日本AiPhone TD-24H/B 24路互通聽筒式有線音訊對講機 醫院 學校 辦公室 簡便操作容易 14按鈕 16芯

配合:

TD-1A

PS-12A or PS-12C

24位主機

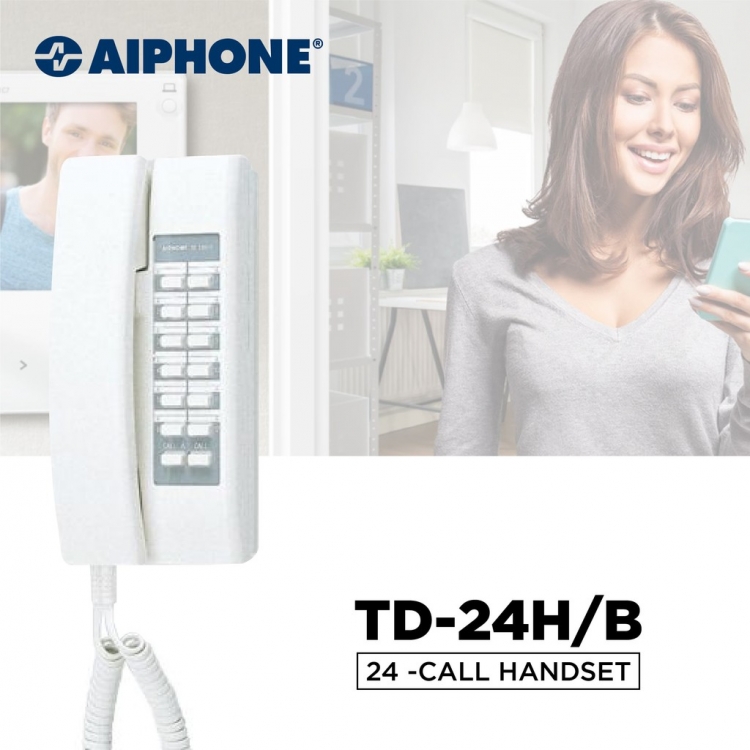

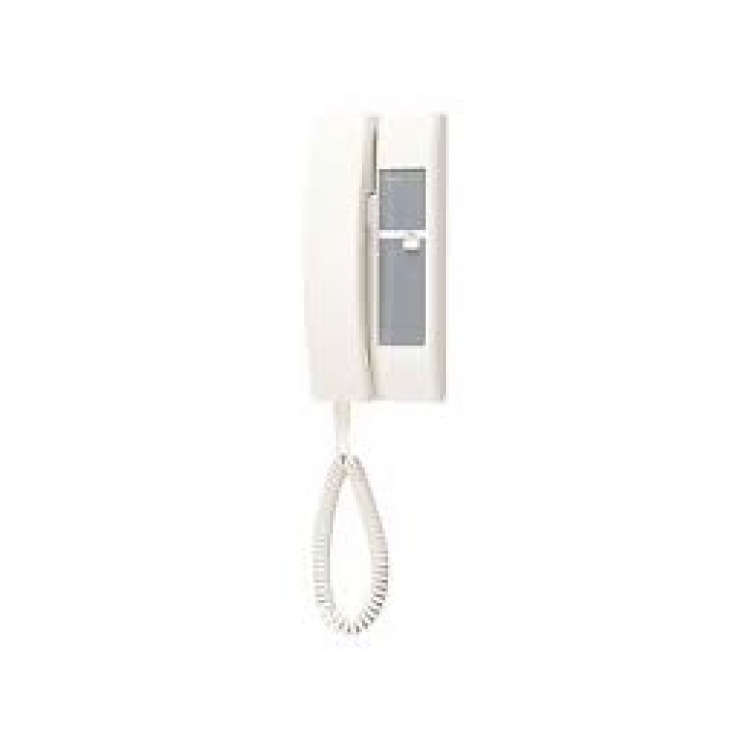

Aiphone 24 Call Master Station
Features:
24 talk paths for communication and paging
Handset cradle for wall mounting can be reversed for desk use
Station-select break-in call

Technical Specifications:
Power Consumption: 70mA per station
Type of communication: Handset (full-duplex)
Door Release Contact: N/O dry contact, 30V AC/DC, 1A (at DE-UR)
Mounting: Desk mount or surface mount directly to wall or 1-gang box
Wire Type: 16-cond., overall shield - use Aiphone #812216 (two runs of 812216 are required for full functionality of the TD-24H/B)
Wire Distance: Between TD Master Stations: 2,200'(22AWG) 4,800'(18AWG)

操作說明提示:
配一樣型號更換比較簡單換。
配不一樣型號牌子就需要逐條線跟，不同牌子接位不同。
小心不用駁錯可能搞亂大廈開門系統。

Key Features
Single entry 0 to 10-call panel
Add-on 8 or 16 call panel(s)

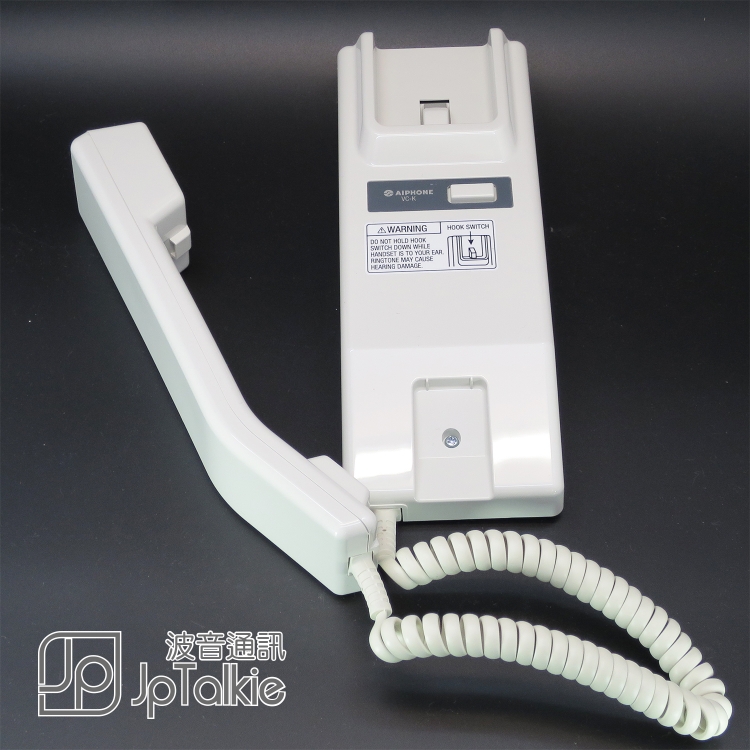

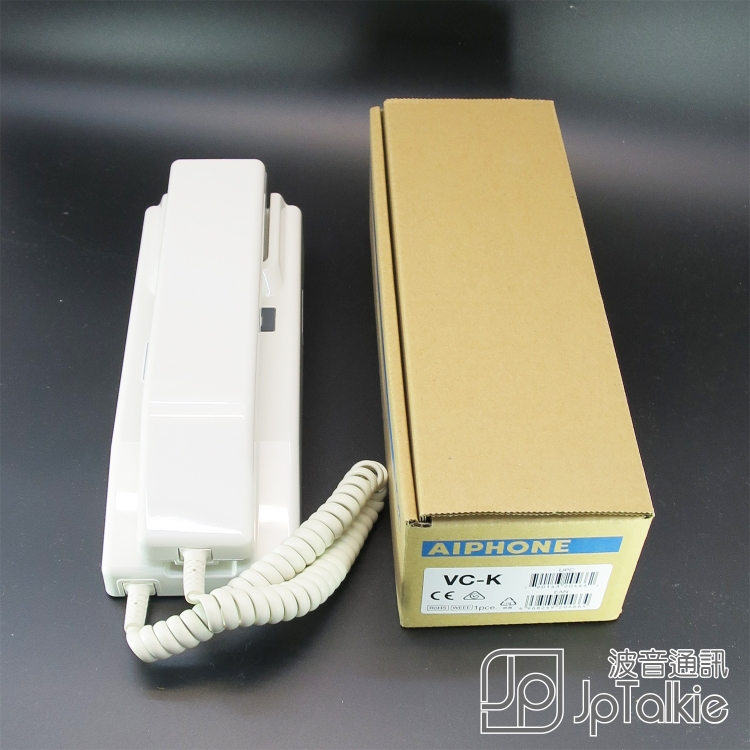

VC-K handset, one or two per residence
Directory back illumination
Single or larger panels up to 58 Button
Techical Specification
Power Source 12V DC, 80mA (intercom) 100mA (lamp)
 Power Supply PS-1215DIN
 Communication Electronic buzzer ring VC-K station(s). (Freq.. 600Hz approx.) Take (either) handset to reply, Single open channel.

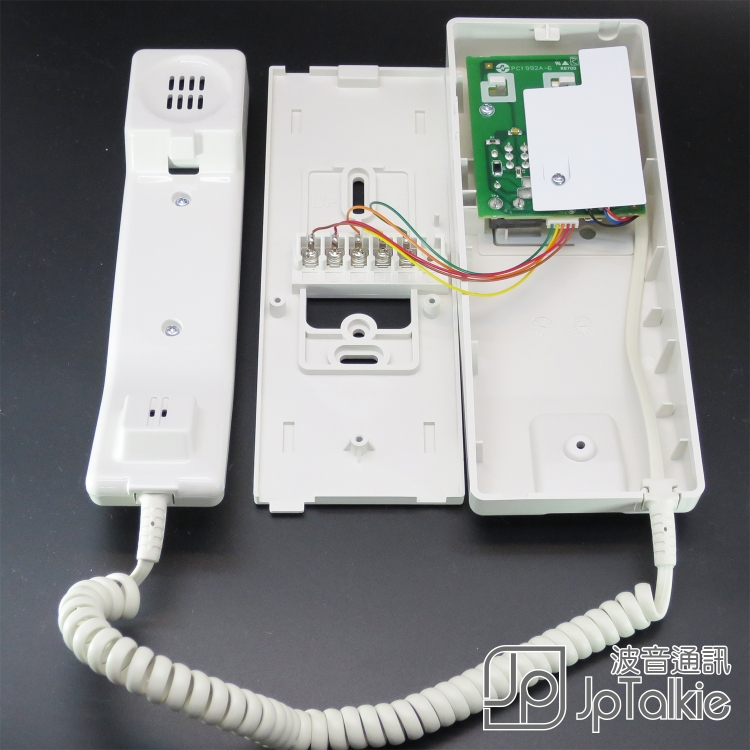

 Wiring 4 Common + no.(residences), in loop.
VC-M ¬ VC-K: 35Ω loop.
VC-M ¬ Power Supply: 4Ω looped.
 Distance VC-M to VC-K 330m(0.65mmØ) 90m(1.0mmØ)

英文小冊子下載

http://www.aiphonepty.com.au/wp-content/uploads/2015/04/Modification-VC-K-with-VAM.pdf

http://www.aiphone.com.au/product/vc-m/

**以上資料轉載予AiPhone 的公開資料
