原裝英國Amphenol Procom CXL70 Antenna UHF  station天線 380-400, 420-450 或420-470Mhz 等等多種頻段選擇請查詢 *不包括底部固定架

中轉發射接收器 專用UHF高增益車載寬頻天線

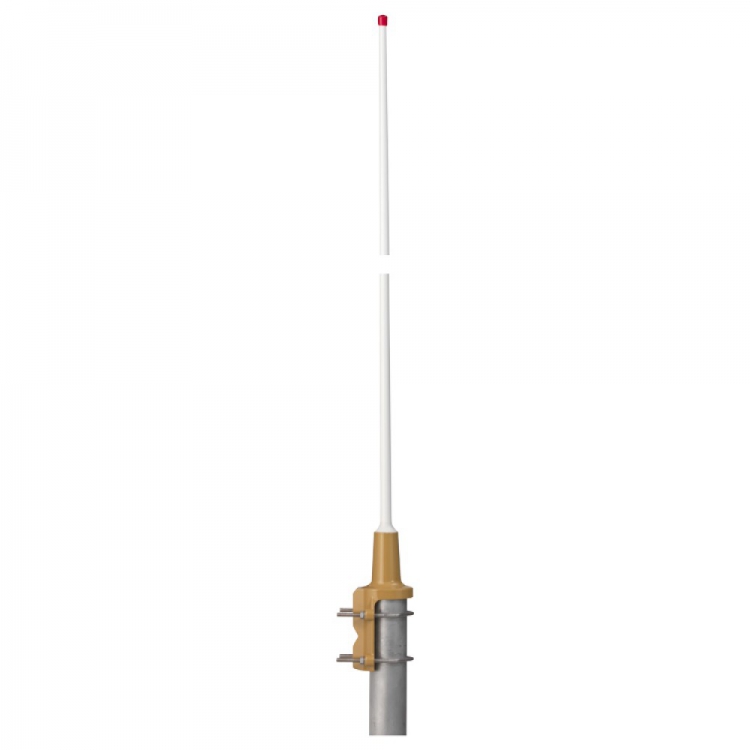

CXL 70-1LW/… is a 0 dBd, vertically polarized, omnidirectional base station and marine antenna which covers the 450 MHz band in three models.
The carefully designed, broadbanded ½ λ-dipole radiating element is made of brass tube and sealed in a high-quality conical glass fibre tube with low wind-load.
Provided with the sturdy “LW” mast mount – a lightweight, multipurpose, epoxy-coated mounting bracket made of non-corrosive aluminium.
The accompanying U-bolts and fittings are made of stainless steel.
To be mounted on vertical or horizontal mast tubes, 16 to 54 mm in outer diameter.
The cable can be led either on the outside or along the inside of the mast tube.
Large bandwidth with respect to both VSWR and gain.
To substantially reduce noise caused by atmospherical discharges, all metal parts in the antenna are DC-grounded. Consequently, the antenna shows a DC-short across the coaxial cable.
The CXL 70-1LW/… is a vibration-proof, lightweight, slim-line, corrosion resistant, modern style base station and marine antenna.

***********************************
●設有租借機給客戶場地測試對講機服務
●款式太多歡迎來電查詢,講解操作程序,全天候技術方案支援。

商品屬性 屬性值 選擇屬性
製造商: Amphenol
產品類型: 天線
產品類型: Unspecified Antennas
產品: Outdoor Antennas
類型: Collinear, broad-band
最低頻率: 420 MHz
最高頻率: 450 MHz
機械樣式: Collinear
類型: Fiberglass
增益: 5.2 dBi
帶寬: 30 MHz
阻抗: 50 Ohms
電壓駐波比(VSWR): 1.5:1
額定功率: 150 W
最低工作溫度: - 35 C
最高工作溫度: + 70 C
電氣類型: Dipole
帶數: 1 Band
安裝風格: Mast Mount
終端類型: Connector
天線連接器類型: N (Female)
中心頻率: 435 MHz
應用: Marine
長度: 1510 mm
高度: 1.51 m
IP額定值: IP66
電纜類型: Coaxial
品牌: Amphenol Procom
頻率範圍: 420 MHz to 450 MHz
極化: Vertical
子類別: Antennas

特有規格
CXL70-L1LW/I 使用頻率： 380-430MHz

CXL70-L1LW/h 使用頻率： 420-470MHz

增  益： ３.4dBI(144Mhz)
駐波比 ：１.５以下
耐入力 ：200Ｗ（瓦特）
阻  抗：５０歐姆
全  長：0.95-1.25Ｍ(米）
接  口：Ｍ－Ｐ介面
推出日期        生產廠家：日缐
