TYT 特易通 TH-9000D 10-60W VHF 136-174MHz 加密頻道 車機 車載對講機 無線電對講機 Scrambler

中轉台接入1750音功能

音頻/亞音頻設置及瀏覽功能
0-9級靜噪等級設置功能
頻率模式/信道模式瀏覽功能
中高低功率可選功能
語音壓擴功能
全頻頻差頻率設置及方向
鍵槃鎖功能
聯系人存儲功能
DTMF/2 tone/5 tone 編解碼
發送身份碼，識別呼叫者身份
搖醒/搖暈/搖斃功能
緊急報警功能
寬窄帶可選功能
發射鎖定設置
繁忙信道鎖定
信道名稱編輯功能
倒頻功能
脫網功能
擾頻功能（可選）
語音提示功能
限時發射功能
自動關機功能
步進頻率設置：5/6.25/10/12.5/20/25/50kHz

Frequency Range:   VHF:136-174MHz
Output Power: VHF: 10W/25W/65W  UHF: 45W/25W/10W
8 group's of scrambler
1750Hz Tone
CTCSS/DCS setting & scanning
0-9 SQL grade setting
Frequency/Channel scanning
High/Mid/Low power selectable
Voice commander
Repeater offset shift
Keypad lock function
Contact book
Battery voltage display
DTMF/2 tone/5 tone
ANI ID
Remote kill/ stun/ activate/ revive
Emergency alarm
Wide/Narrow band setting
TX inhibit
Busy Channel Lock-Out
Channel name editing
Reverse frequency
Talk around
Scrambler(Optional)
Voice prompt
Time-out Timer
Auto Power off
VFO step setting:5/6.25/10/12.5/20/25/50kHz
Specifications:
 General
Frequenvy Range 136-174MHz
Channel Capacity 200
Channel Spacing
5/6.25/8.33/10/12.5/15/20/25/30/50KHz
Freruency Stability2.5ppm
Operating Temperature-20℃ ~ + 60℃
Operating Voltage 13.8V DC ± 15%
Dimension(HxWxD)145mm x190mm x47mm
Weight(with bracket)
1200g
Receiver
Reference Sensitivity
0.2μV @ 12dB SINAD
Operating Bandwidth
60dB@12.5KHz /70dB@25KHz
Adjacent Channel Selectivity 60dB@12.5KHz 70dB@25KHz
Inter-modulation Rejection≥60dB/ ≥65dB
Spurious Response Rejection≥70dB
Rated Audio Response+1-+3dB
Rated Audio Distortion<5%
FM Hum&Noise
≥40dB@25KHz /≥45KHz @12.5KHz
Transmitter
RF Power45W/25W/10W(UHF)/60W/25W/10W(VHF)
Frequency Modulation11kΦF3E / 16kΦF3E
Modulation Distortio<5%
FM Noise≥36dB@25KHz /≥40KHz @12.5KHz
Adjacent Channel Power≥60dB@12.5KHz /≥70KHz @25KHz
Audio Response+1-+3dB
Audio Distortion<5%

Package contents:

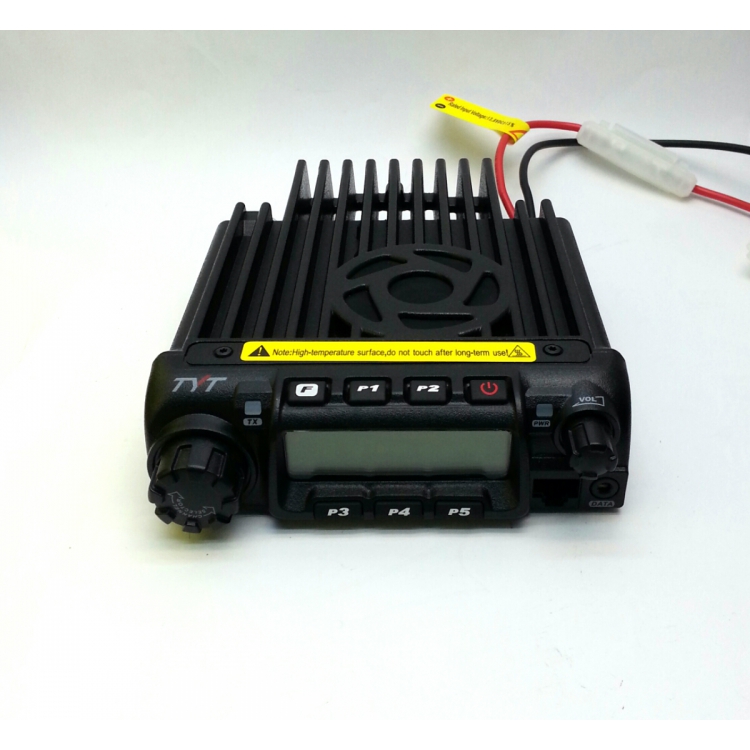

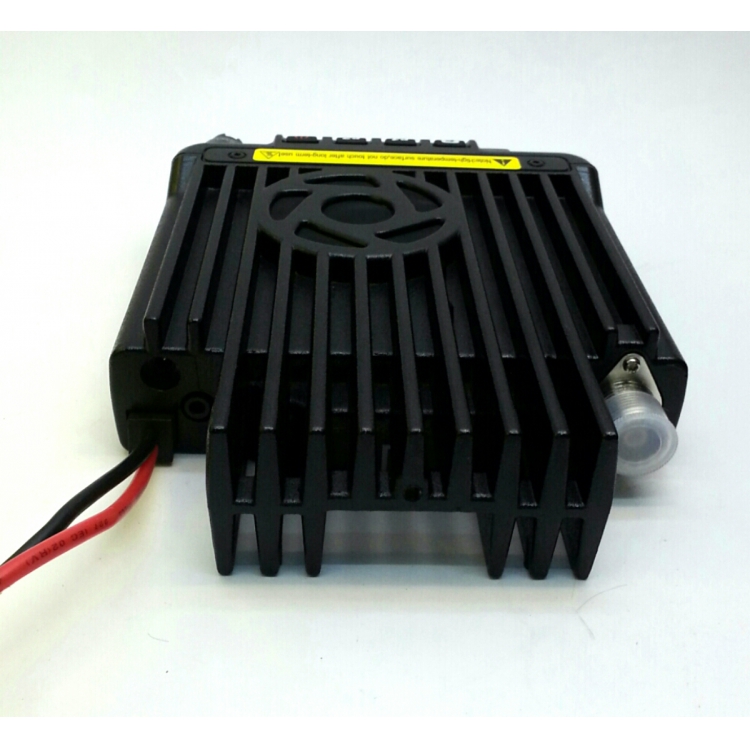

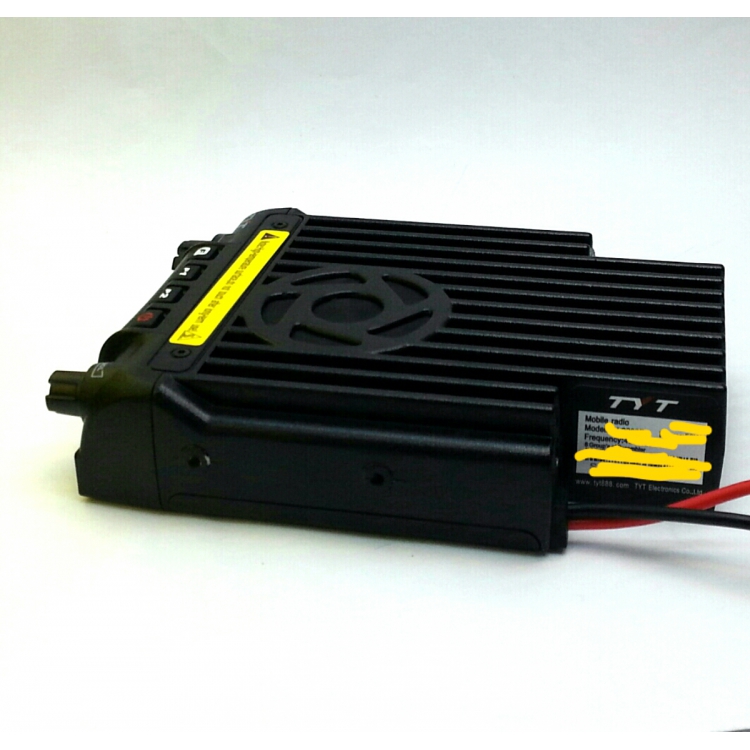

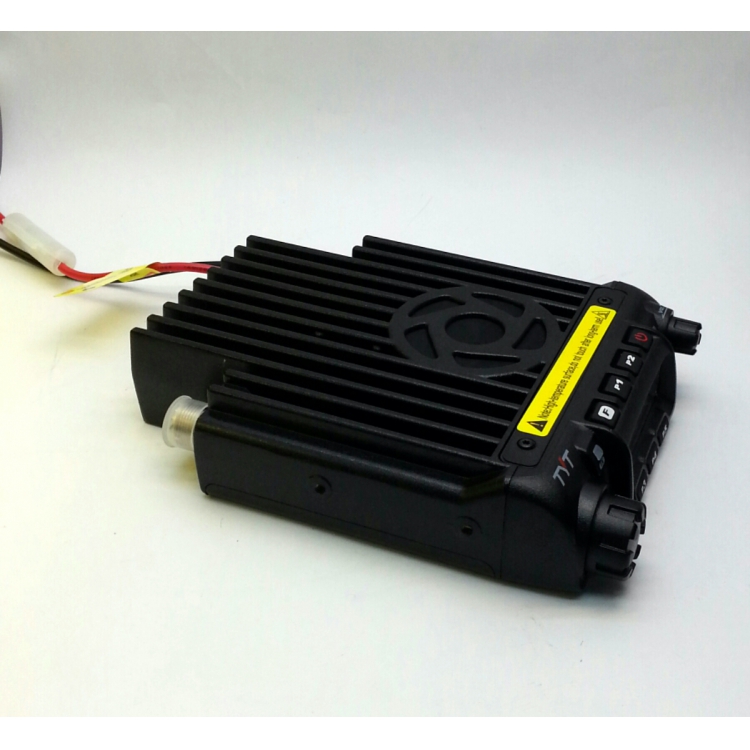

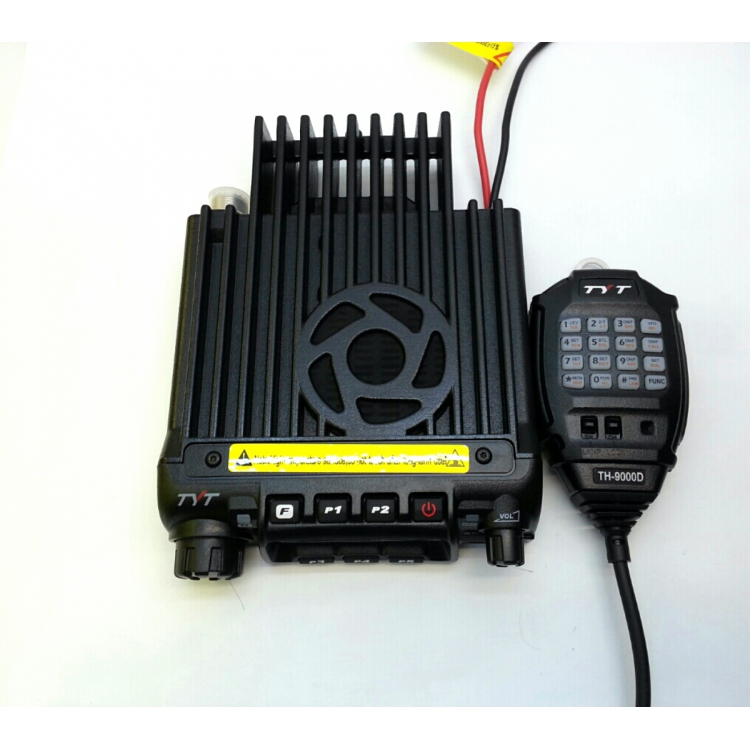

1* TYT TH-9000D Mobile Transceiver VHF radio (136-174 MHz)
1* Handheld Microphone
1* Power Cable
1* Screws and Accessories
1* User's Manual
1* Fixed Bracket
