數碼對講機(DMR) 類比 訊號測頻儀。
支援頻段:136MHz-520MHz
可測CTCSS / DCS 內碼數值
自動背光。
內建鋰電池,使用MICRO USB充電。商品包含:

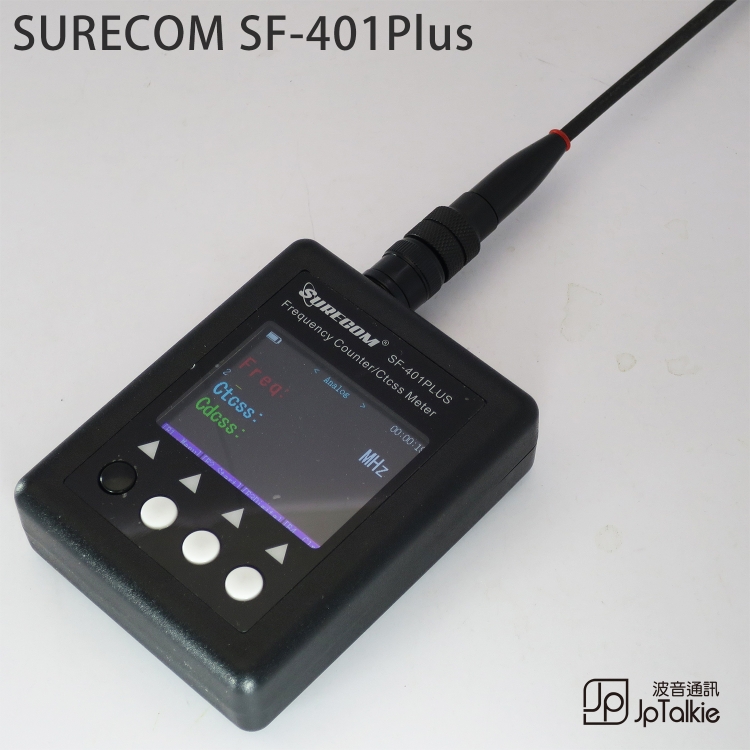

SF-401PLUS計頻器x1
12.5cm天線x1
110V~240V變壓器x1
MINI USB充電線x1
說明書x1
商品特色:
大型彩色LCD液晶顯示
TCXO溫度補償晶體振盪器
(-45度~65度達到±2~±4PPM)
類比可測(頻道+內碼)數位只能測頻道
量測頻率:136~520MHZ
天線長度12cm
重量:103克(不含天線)
尺寸:高9cm/寬7cm/厚2.7cm
Introduction:
- The frequency meter capable of measuring the parameters of the frequency of the continuous carrier signal walkie-talkies , with signal strength indicator. it is the tool of choice for maintenance personnel,test frequency and signal strength of wireless enthusiasts.
- This portable frequency counter is designed for counting continuous wave signal comes from Two-way Radio.
- There are easy ranges for you to choose. The ranges cover most of the frequency of the two way radios you want to measure.
- Its four-button control is easy to use and its small size allows you to carry it anywhere you like.
- Work by TCXO(Temperature Compensate X'tal (crystal) Oscillator) ,In the range of -45 ℃ ~ 65 ℃ can reach ± 2 ~ ± 4ppm accuracy
- This include very interesting frequency areas such as 2m HAM radio, all VHF and UHF
- DMR Radio signal e frequency counter.
- Easy Battery level
Feature & Specification:
- Frequency range: 27Mhz-3000Mhz
- CTCSS/DCS Decoder
- LCD Dim level setting
- Frequency digital 0.000 or 0.0000 ( +-0.001)
- Work by TCXO(Temperature Compensate X'tal (crystal) Oscillator) 2~2.5ppm
- Frequency Rresponse time: 0.2-0.5sec.( CTCSS/CDCSS >0.5-1sec)
- Color Display 240x320
- Build-in Li-ion battery
- Net Weight: 113g
- 4 buttons control
- Auto power off 1-9minutes
- Charging battery LED indicator
Specifications for SF-401 and SF-401 PLUS
Brand Name: SURECOM HK SF-401 SF-401-PLUS DIGITAL RADIO signal DMR No YES Signal attenuation s.w.-10db No YES Battery Buily-in level Voltage Easy icon Flash Light LED YES NO TFT LCD: 320 x 240 pixels YES YES Frequency Range: 27MHz -3GHz YES YES Li-ion Battery build-in : 3.7V 600mah YES YES current consumption: 10ma YES YES TCXO crystal Oscillator +- 2.5ppm YES YES Changer in: Micro usb +5V YES YES impedance input:
50 Ohm (BNC) YES YES Weight:
113g YES YES Dimensions size :
70 x 25 x 90mm YES YES SF-401/PLUS
Power On/Off
Power On –Press and Hold down the [black key] by 2 second
Power Off –Press and Hold down the [black key] by 4 second of number count down to 0
Charging the battery
Plug the Power cord into adaptor , Micro usb connected SF-401, The Led indicating:
*The RED Led is light - Charging * The Green Led is light - Full
How to check Frequency measuring. See PIC.3The transmitter near the frequency counter anetnna , see the signal reception conditions is zone green, you can test. Please see Pic.3
cautions:
e.g. display 1800.000Mhz , The transmitter distance is too close to the frequency counter will affect the test results, , the signal bar is red .(see Pic.1)
e.g. display 0.000, , The transmitter distance is too far to the frequency counter and signal is weak ,will affect the test results, the signal bar is low .(see Pic.1)
