Urmet 1130-1樓宇對講機系统 室內音訊對講機

居屋大廈對講機,聽筒式大廈對講機(子機)

遙距開啟樓下街閘按鈕

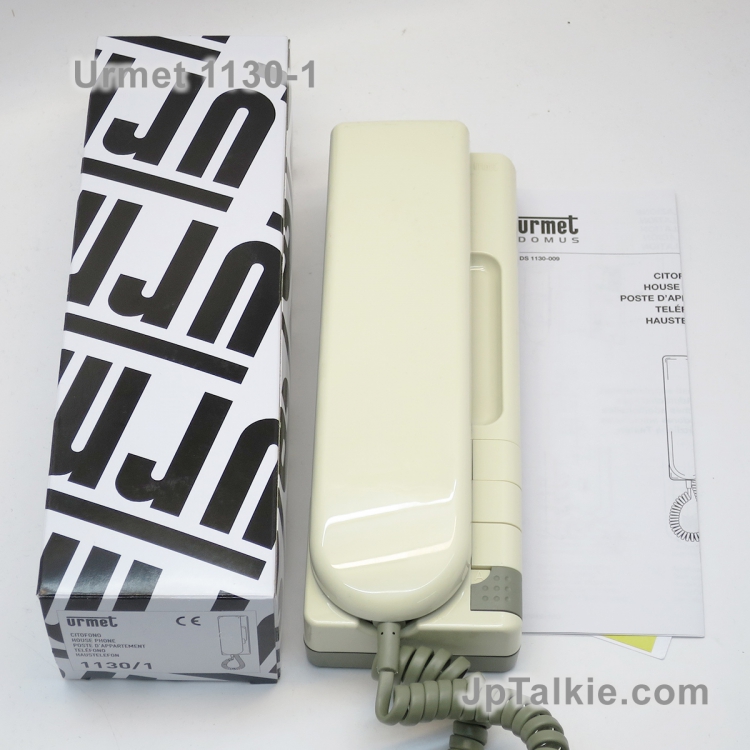

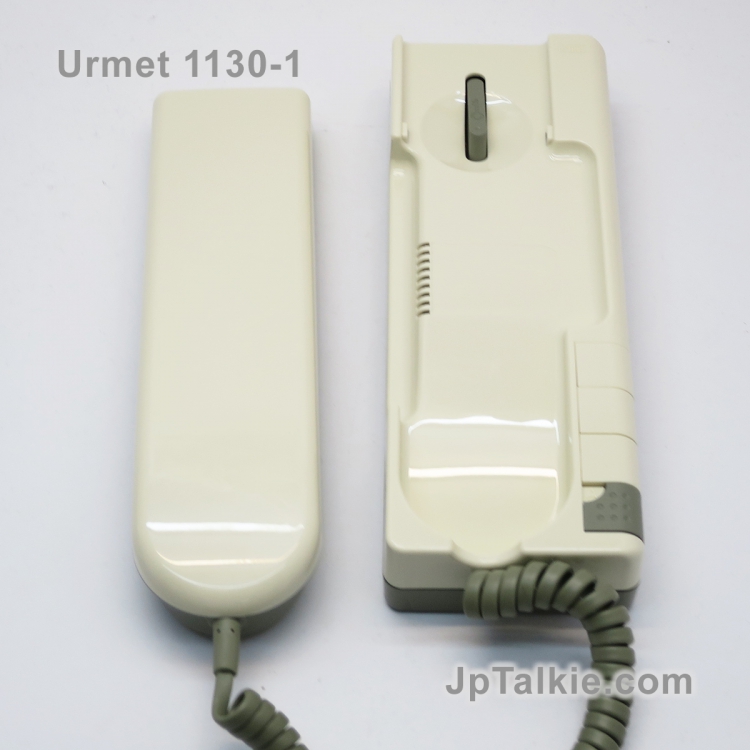

The Mod. 1130/1 doorphone designed by Giugiaro is a classic product for use in traditional
doorphone systems only with call to buzzer. Ivory or white (cod. 1130/50), with spiral cord, can be installed either on wall or table-top using specific accessories.
It is also ready for connecting to an electromechanical one-wire doorphone switchboard.
Very versatile and suitable for replacing doorphones mod. 1030, mod. 930, mod. 730 in existing systems.

操作說明提示:
配一樣型號更換比較簡單換。
配不一樣型號牌子就需要逐條線跟，不同牌子接位不同。
小心不用駁錯可能搞亂大廈開門系統。

Features:

Set-up for the addition of three additional
independent buttons which can be used for
intercoms or auxiliary services (calling the porter’s
lodge, switching the stairs lights on, opening a
secondary electrical lock, etc.). White ABS casing

dimensions (l x h x d): 77 x 218 x 56 mm

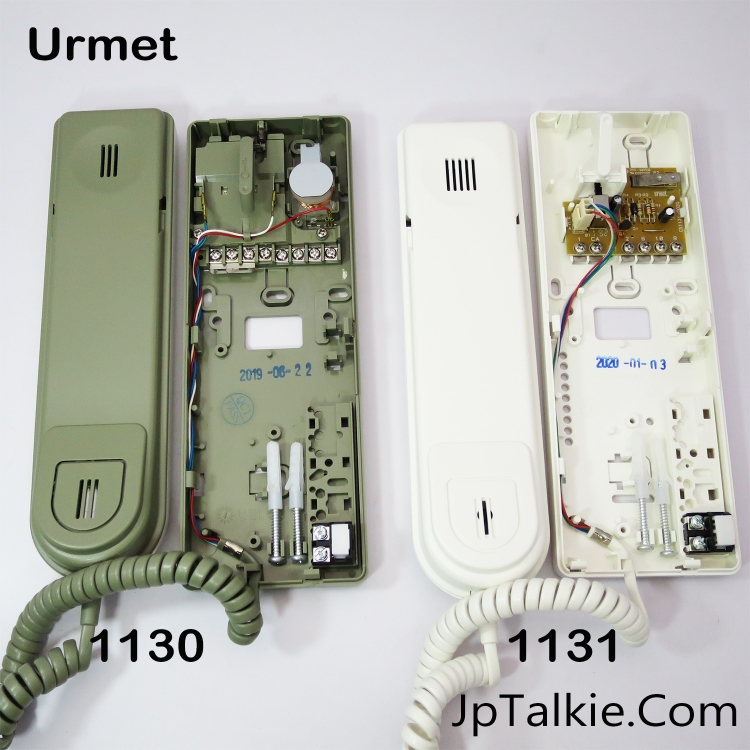

1131

1 端子--------音訊輸入(樓下主機音訊來到話筒發出聲音)
CA 端子-------- 呼叫線(注意：呼叫聲音信號源來自於樓下主機）
2 端子--------音訊輸出(輸出去樓下主機發出聲音)

6 端子--------接負極
10 端子-------- 為開燈線（如本樓沒有燈可以不接）
9 端子--------開鎖（開門）線

http://www.archiexpo.com/prod/urmet/product-67576-1256445.html

**以上資料轉載予Urmet的公開資料

適用於屋苑:

麗港城 3期 34座
